North American Market Commercial High Efficiency 150Lm/W Magnetic Linear retrofit Kit

Name: North American Market Commercial High Efficiency 150LmW Magnetic Linear retrofit Kit
Brand: ILEDING
Price: 24.00 USD

China North American Market Commercial High Efficiency 150Lm/W Magnetic Linear retrofit Kit wholesale

Place of Origin : Jiangsu, China

Brand Name : ILEDING

Model Number : R7-24TRF35WD3PXXK

Certification : DLC/ETL

MOQ : 50 pieces

Price : $24.00/pieces 50-99 pieces

Color Temperature(CCT) : 3500K (Warm White), warm White

Warranty(Year) : 5-Year

Color Rendering Index(Ra) : 85

Support Dimmer : Yes

Lighting solutions service : Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation

Lifespan (hours) : 50000

Working Time (hours) : 50000

Product Weight（kg） : 1

Warranty(Years) : 5

Input Voltage(V) : 120-277V

Lamp Luminous Efficiency(lm/w) : 140

CRI (Ra>) : 80

Working Temperature(℃) : -40 - 40

Working Lifetime(Hour) : 50000

Lamp Body Material : PC

IP Rating : IP65

Application : shop, Commercial

Light Source : LED, LED

Tube Length(ft) : 4

LED Light Source : SMD2835

CRI(Ra) : 85

Driver : 120-277V / 120-347V

Warranty : 5years

product name : DLC 140lm Led Magnetic Strip Retrofit Kit 1x4 2x2 2x4 Light Bar

Contact Now

Product Description

North American DLC 140lm Led Magnetic Strip Retrofit Kit 1x4 2x2 2x4 Light Bar

North American Market Commercial High Efficiency 150Lm/W Magnetic Linear retrofit Kit

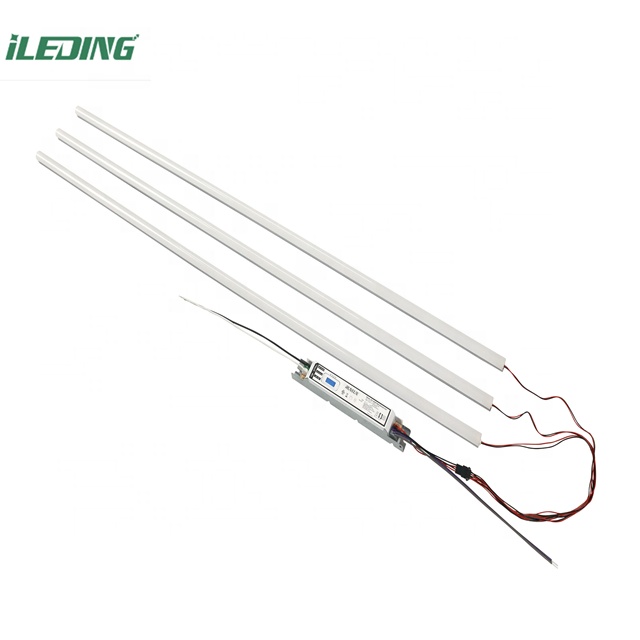

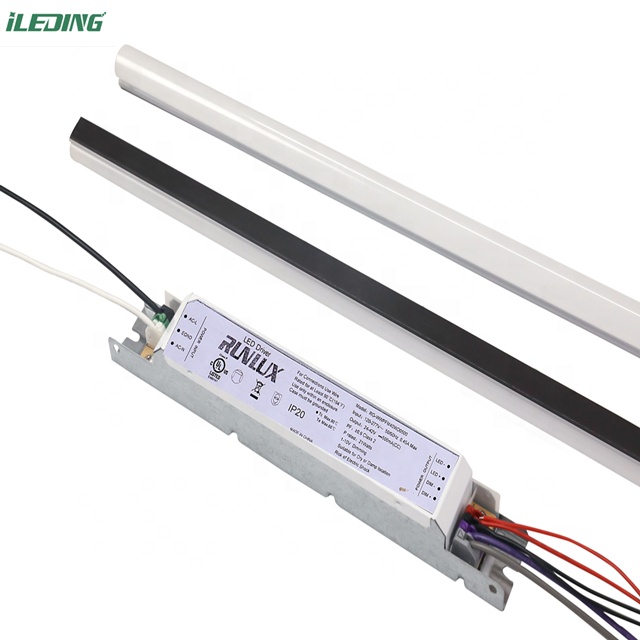

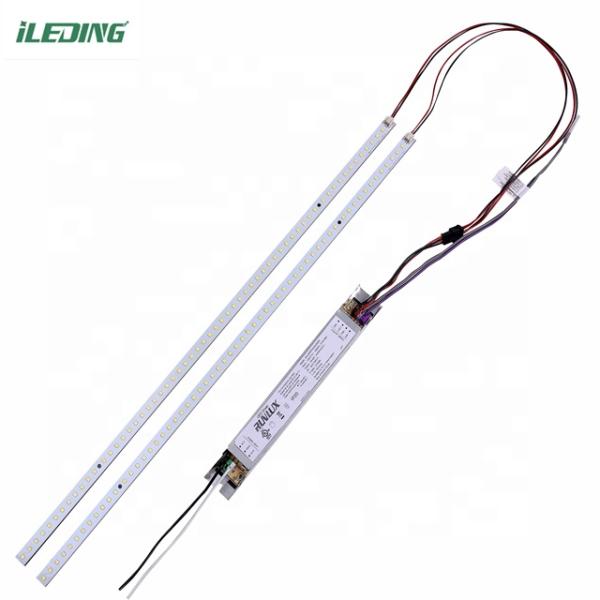

Detailed Images

Features:

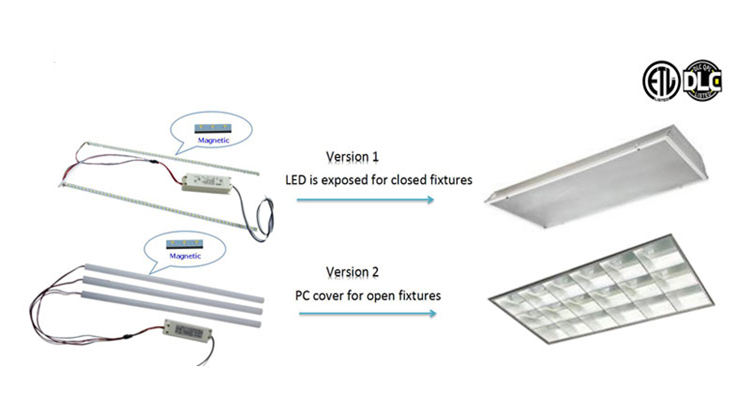

●Voltage:120-277V/60Hz or 120-347V/60Hz ●Lumen Efficiency:Luminous Efficiency: >145 lm/w LED module, 130 lm/w Luminaire ●Power Factor:up to 0.998 ●CCT:3500K, 4000K, 5000K ●CRI (Ra):82 nominal ●Beam Angle 110° ●Mounting method:Magnetic led strips and driver, quick-connect ●Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffers” and 4’ and 8’ linear fluorescent fixtures ●Dimmable is also available ●Frost lens is available

Product Presentation

Model	R7-24TRF35WD3PXXK
Material	PC
Power	34W &29W&25W
Lumen	5075LM
Voltage	120-277V 120-347V
CCT	3500K/4000K/5000K
Size	2pcs x 1100mm
Dim	0-10V
PF	0.9

Application

The LED Retrofit Kit Strips replace traditional tubes in a variety of commercial applications, including offices, lobbies, hallways and conference rooms in schools, libraries, airports, showrooms and hospitality environments.

Related Products

Company Introduction

Shanghai ileding has a very professional quality control system. QC are strictly under control during the process of incoming inspection, production, storage and delivery, so as to guarantee a good quality.

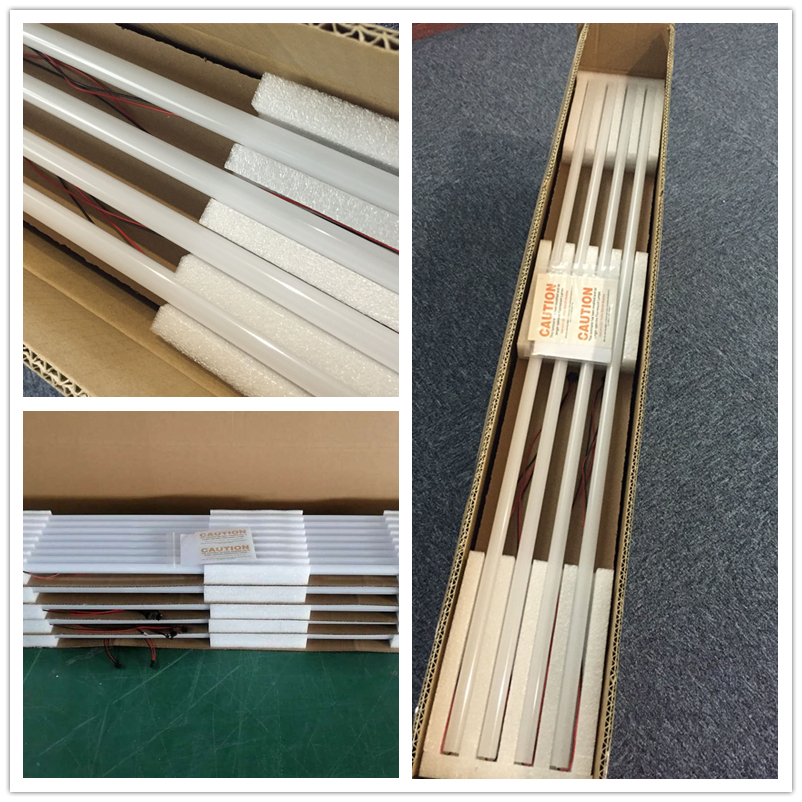

Packing&Shipping

FAQ

Q1: Are you are a factory or a trading company?
We are the factory and we have our own die-casting workshop.

Q2: All products have a warranty?
Yes, all products have 5 years warranty at least.

Q3: Can you put our brand name or logo on our products?
Yes, we support ODM and OEM service.

Q4: Can i have a sample order for LED light?
Yes, we welcome sample order to test and check quality. Mix samples are acceptable.

Q5: How to deal with the faulty?
Firstly,we have strict quality control over our products and the defective rate will be less than 0.2%.
Secondly, if there are some problems, please contact with us. We can discuss how to deal with them
until you are satisfied.

--- Don't hesitate to contact us!
