ETL DLC 32W Troffer Retrofit Kit for 4FT Magnetic LED 24 22 Light Linear retrofit Kit

Name: ETL DLC 32W Troffer Retrofit Kit for 4FT Magnetic LED 24 22 Light Linear retrofit Kit
Brand: ILEDING
Price: 14.65 USD

China ETL DLC 32W Troffer Retrofit Kit for 4FT Magnetic LED 2*4 2*2 Light Linear retrofit Kit wholesale

Place of Origin : Jiangsu, China

Brand Name : ILEDING

Model Number : R7-24TR32WD35K

Certification : DLC/ETL

MOQ : 2 pieces

Price : $14.65/pieces >=2 pieces

Color Temperature(CCT) : 3500K (Warm White), warm White

Warranty(Year) : 5-Year

Color Rendering Index(Ra) : 80

Support Dimmer : Yes

Lighting solutions service : Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation

Lifespan (hours) : 50000

Working Time (hours) : 50000

Product Weight（kg） : 1

Warranty(Years) : 5

Input Voltage(V) : 120-277V

Lamp Luminous Efficiency(lm/w) : 145

CRI (Ra>) : 80

Working Temperature(℃) : -40 - 40

Working Lifetime(Hour) : 50000

Lamp Body Material : PC

IP Rating : IP65

Application : Office, Commercial

Light Source : LED, LED

Tube Length(ft) : 4

LED Light Source : SMD2835

CRI(Ra) : 85

Driver : 120-277V / 120-347V

Warranty : 5years

product name : 32W Troffer Retrofit Kit 4FT Magnetic LED Retrofit Strips Kits

Contact Now

Product Description

ETL DLC 32W Troffer Retrofit Kit 4FT Magnetic LED Retrofit Strips Kits 2*4 2*2

ETL DLC 32W Troffer Retrofit Kit for 4FT Magnetic LED 2*4 2*2 Light Linear retrofit Kit

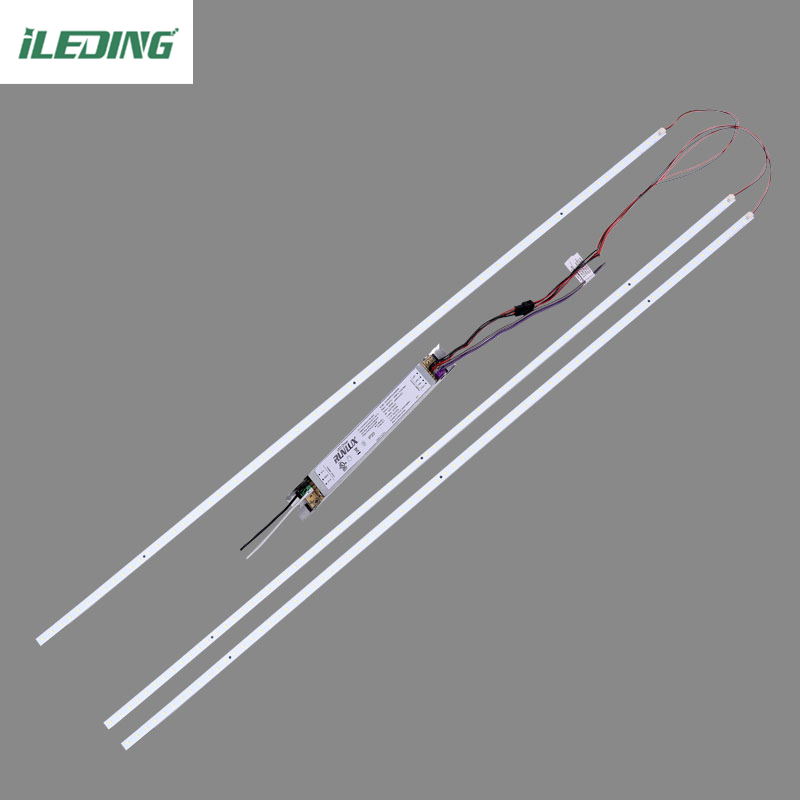

Detailed Images

Features:

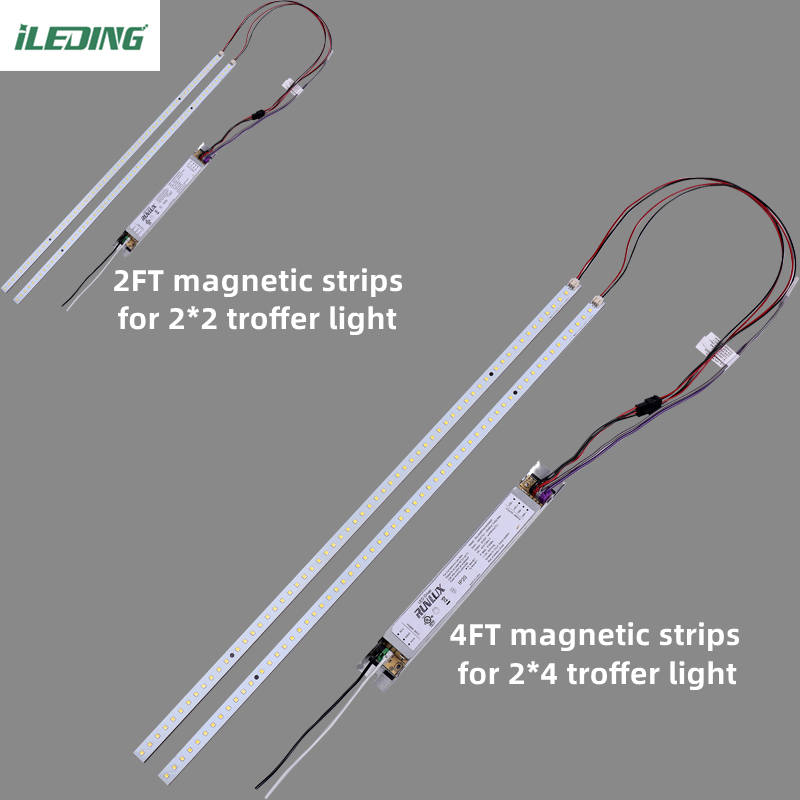

●Voltage:120-277V/60Hz, 120-347V optional ●Lumen Efficiency:>150 lm/w LED module, 100-125 lm/w Luminaire ●CCT:3000, 3500, 4000, 5000K ●Mounting method:Magnetic led strips and driver, quick-connect ●Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffers” and 4’ and 8’ linear fluorescent fixtures ●Dimmable or non-dimmable ●Frosted lens is available

Product Presentation

Model	R7-24TR32WD35K
Material	PC
Power	32W
Lumen	5000
Voltage	120-277V 120-347V
CCT	3500K/4000K/5000K

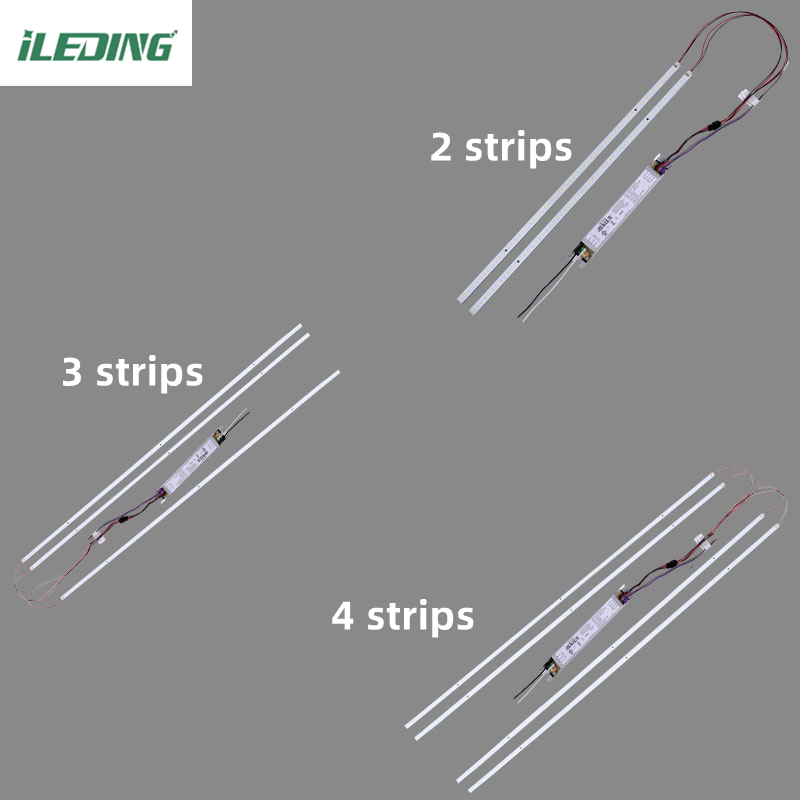

Size	4pcs x 1100mm
PF	0.9
Dim	0-10V

Application

The LED Retrofit Kit Strips replace traditional tubes in a variety of commercial applications, including offices, lobbies, hallways and conference rooms in schools, libraries, airports, showrooms and hospitality environments.

Certifications

DLC 5.1 Standard -Linear Retrofit Kits for 2x4 Luminaires

Related Products

Company Introduction

Shanghai ileding has a very professional quality control system. QC are strictly under control during the process of incoming inspection, production, storage and delivery, so as to guarantee a good quality.

Packing&Shipping

FAQ

Q1: Are you are a factory or a trading company?
We are the factory and we have our own die-casting workshop.

Q2: All products have a warranty?
Yes, all products have 5 years warranty at least.

Q3: Can you put our brand name or logo on our products?
Yes, we support ODM and OEM service.

Q4: Can i have a sample order for LED light?
Yes, we welcome sample order to test and check quality. Mix samples are acceptable.

Q5: How to deal with the faulty?
Firstly,we have strict quality control over our products and the defective rate will be less than 0.2%.
Secondly, if there are some problems, please contact with us. We can discuss how to deal with them
until you are satisfied.

--- Don't hesitate to contact us!
